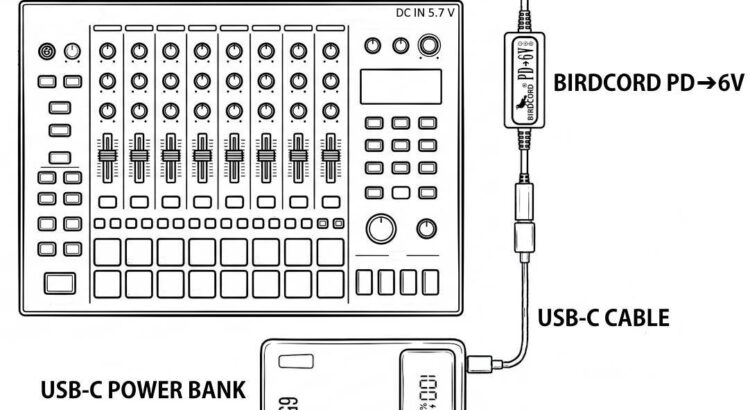

The Roland MC-707 Groovebox can be powered from a USB-C power bank using a Birdcord PD➔6V power cable. The setup diagram below shows how to connect the devices for portable operation without a mains outlet, for example when making music outdoors, travelling by train, or just sitting on the couch.
Quick Facts: Roland MC-707 Mobile Setup
| Device | Roland MC-707 |
| Supply voltage | 5.7-6 V DC |
| Current draw | max. 2.0 A |
| Power consumption | max. 12 W |
| Connector | 5.5 x 2.1 mm |
| Polarity | Center negative |
| Power source | USB-C power bank* |
| Compatible power converter | Birdcord PD➔6V |
| Status | Tested and verified |
*Note: Use a USB-C power bank with USB Power Delivery (PD) and/or Quick Charge 4/4+ support. The power rating should be higher than the power consumption.
What You Need
✅ Birdcord PD➔6V – A compact USB-C power cable that requests 9 V output from a compatible USB-C power bank, converts it to 6 V, and delivers it to the Roland MC-707. View product
✅ USB-C Power Bank – A power bank that supports USB Power Delivery (PD) and/or Quick Charge 4/4+. A minimum rating of 18 W and 10,000 mAh is recommended. Recommended: INIU 65 W 20,000 mAh USB-C PD Power Bank
✅ USB-C cable – To connect the power bank to the Birdcord PD➔6V (usually included with the power bank). View product
How It Works
The Roland MC-707 requires a DC power supply in the 5.7-6 V range. USB-C power banks typically provide 5 V by default, so a compatible voltage converter is needed to obtain the required voltage.
The Birdcord PD➔6V negotiates a 9V DC output with a compatible USB-C power bank and converts it to 6 V DC for the MC-707.
Connect the Birdcord PD➔6V to the power bank using a USB-C cable, then plug the DC connector into the MC-707. The setup works exactly like using the original power adapter, but gives you the freedom to create music anywhere.
Frequently Asked Questions (FAQ)
How long can it run on a USB-C power bank?
With a standard 20,000 mAh (74 Wh) power bank, the Roland MC-707 will run for over 6 hours of continuous use under typical operating conditions.
Will my existing power bank work?
Yes, as long as it supports 9 V output. You can easily check this by looking at the technical specifications printed in small letters on your power bank. If you see an output listing like 9V=2A, 9V=3A (or anything similar), it is compatible and will work perfectly. If it only lists 5V, it is not compatible.
Will this setup introduce any ground loop noise or hum?
No. Since your Roland MC-707 is completely disconnected from the mains grid and runs on isolated battery power, you actually eliminate ground-loop hum. It is one of the quietest ways to power your gear.
Can I power other equipment from the same power bank?
Potentially, yes, provided the power bank has suitable outputs to meet the power requirements of all connected devices. You can usually find the output specifications printed in small letters on the back of the power bank.
Can this power setup damage my MC-707?
No. We thoroughly tested this setup and monitored the MC-707’s voltage regulator temperature throughout testing. The Birdcord PD➔6V supplies a slightly higher voltage than the original PSD power adapter. Our tests confirmed that the MC-707 works reliably with this setup.
